AC C-Frame Motor Shaded Pole Motor 120V 60HZ Boot Dryer Blanket Dryer Bed Warmer Use

Name: AC CFrame Motor Shaded Pole Motor 120V 60HZ Boot Dryer Blanket Dryer Bed Warmer Use
Brand: Zhaoli
Price: 1 USD

AC C-Frame Motor Shaded Pole Motor 120V 60HZ Boot Dryer Blanket Dryer Bed Warmer Use Manufactures

Brand Name : Zhaoli

Model Number : YJ61-25

Certification : UL, CUL, CE, VDE, CCC, ROHS, REACH

Place of Origin : China

MOQ : 1000pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 300,000pcs per day

Delivery Time : 20-40 days

Packaging Details : cartons + wooden pallet

Name : C-frame motor

Rated voltage : 110-127V 60HZ

Stack size : 61x60.5mm

Lamination : 25mm

Insulation class : CL.H

Bearing : sleeve bearing ball bearing optional

Shaft : customized

Load : fan blade

Printing : Customized printing

Packing : Customized packing

Motor Type : Asynchronous motor

Phase : Single phase

Protection feature : Thermal protection

Application : dryer

Contact Now

AC C-Frame Motor Shaded Pole Motor 120V 60HZ Boot Dryer Blanket Dryer Bed Warmer Use

Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece.

Specification:

Model

Rated Voltage/ Frequency

V/HZ

Free Load

On Load (impeller)

Current

Input power

Speed

RPM

Start-up voltage V

Current

Input power

Speed

RPM

YJ61/300

120

0.48+/-15%

24+/-15%

3300+/-10%

<90V

0.78+/-15%

44+/-15%

2000+/-10%

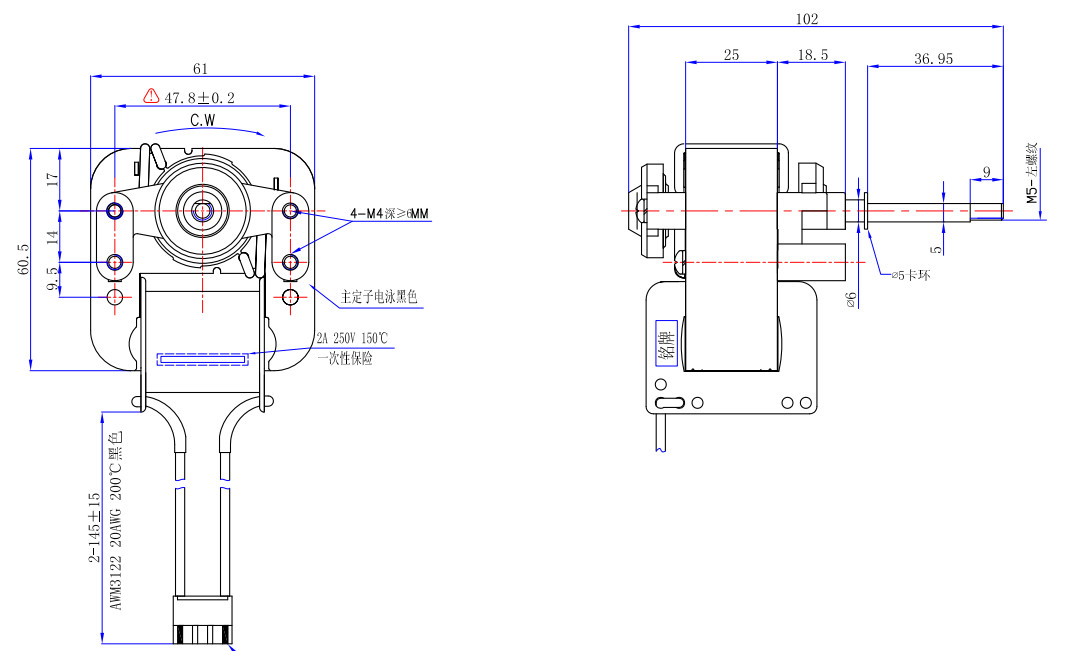

Drawing:

AC C-Frame Motor Shaded Pole Motor 120V 60HZ Boot Dryer Blanket Dryer Bed Warmer Use

AC C-Frame Motor Shaded Pole Motor 120V 60HZ Boot Dryer Blanket Dryer Bed Warmer Use Images
